Product Description

Model: XPD-4-18-CD
S/N: 90793
4 Pistons
Deposit Range: .1oz – 15oz Per Piston
Piston Diameter: 2-3/4″
Stainless Steel Hopper

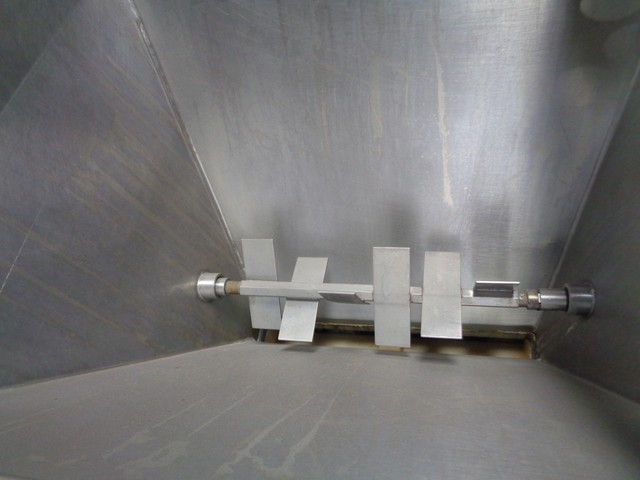

Stainless Steel Agitator In Hopper
Stainless Steel perforated Cover Over Hopper
Hopper Dims: 24-1/4″L x 28″W x 23-1/2″D
Piston Cylinder Dims: 2-3/4″ x 6″
Conveyor Width: 19-3/4″
Conveyor Length: 74″
Accepts Pans Up To 18″W
Height From Floor To Conveyor: 39-1/4″
With Photocell
Manually Adjustable Deposit Size
O.A. Dims: 76″L x 53″W x 75″H
480V 60Hz 3Ph
Stainless Steel Construction
Mounted On A Square Tubular Stainless Steel Frame
On Casters

This Depositor Comes With 2 Poly Cylinders And 14 Dies:
Poly Cylinder #1: (Split) 8-1/4″L x 3-3/4″W
Poly Cylinder #2: 18″Lx 3-5/8″W
Die Plate #1: 2 Oval Holes, 6-1/4″L x 3/4″W
Die Plate #2: 2 Oval Holes, 6-3/4″L x 3/4″W
Die Plate #3: 3 Oval Holes, 3-1/2″L x 3/4″W
Die Plate #4: 1 Oval Hole, 15″L x 1″W
Die Plate #5: 2 Oval Holes, 3-3/4″L x 3/4″W
Die Plate #6: 2 Oval Holes, 7-1/2″L x 1/4″W
Die Plate # 7: 2 Oval Holes, 1-1/4″L x 3/4″W
Die Plate #8: 3 Oval Holes, 1-3/4″L x 7/8″W
Die Plate #9: 2 Oval Holes, 3-7/8″L x 3/4″W
Die Plate #10: 2 Rectangular Holes, 6-1/4″L x 1-3/8″W
Die Plate #11: 6 Round Holes, 1″ Diameter
Die Plate #12: 4 Round Holes, 1-3/8″ Diameter
Die Plate #13: 4 Round Holes, 11/16″ Diameter
Die Plate #14: 3 Round Holes, 1-7/8″ Diameter
