Product Description

This Line Consists Of:
1) Trough Lift
1) Dough Chunker
1) Dough Divider
1) Set Of Spreading Belts
1) Intermediate Proofer
1) Set Of Spreader Belts (Proofer Bypass)
1) Sheeting Head
1) Flour Duster
1) Dough Moulding Station
1) Panning Conveyor
1) Cross Conveyor

Mfg Date: 2006
O.A. Line Foot Print: 36’L x 4′-1/2″W x 12′-9″H
**New Head Installed in 2014**

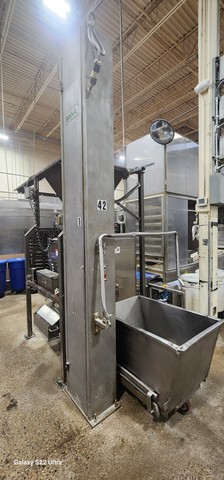

Trough Lift:
Dumps Dough Directly In To Chunker
Stainless Steel Safety Rail Around Lifting Area
Secured To The Floor By 4 Anchor Bolts
Stainless Steel Construction

Dough Chunker:
Feeds Directly In To The Divider
Large Hopper
Small Level Viewing Window On Hopper
Mounted On A Square Tubular Steel Frame

Divider:
6 Rows
Max Dough Ball Weight In 6 Rows: 7.5oz
Minimum Dough Ball Weight In 6 Rows: 4.2oz
O.A. Dims: 39.5″L (Without Spreader Belts) x 38.5″W x 64.25″H
Weight: 2734 lbs
Push Button Operation
Flour Duster Mounted Over Discharge
Stainless Steel Construction

Spreading Belts:
6 Row
Blue Plastic Intralox Belting
Feeds Dough Balls Directly In To Proofer

Proofer Bypass/ Set 2 Of Spreader Belts:
6 Row
Feeds Directly Under Sheeter

KB System Intermediate Proofer:
6 Rows
Poly And Mesh Baskets
Variable Speed Control
Painted And Stainless Steel Safety Covers
6 Row Stainless Steel Chutes That Feed Directly In To  The Sheeter
Plexi Glass Viewing Windows
Stainless Steel Construction

KB Systems Sheeting Head:
6 Rollers
Manually Adjustable Roller Pressure
Poly Rollers
Stainless Steel And Plexi Glass Safety Covers
Mounted Over Conveyor
Stainless Steel Construction

Flour Duster:
Mounted Over Sheeting Head Outfeed Conveyor
Stainless Steel Construction

Moulding Station:
Mounted Over Conveyor
Perforated Stainless Steel Safety Cover
Manually Adjustable Pressure

Panning Conveyor:
Reciprocating Conveyor Belt
Drops Products Directly On To The Pans
Stainless Steel Construction

Cross Conveyor:
Positioned Underneath Of The Panning Conveyor
Stainless Steel Safety Panels
Emergency Stops At Both Ends Of The Conveyor
Stainless Steel Construction

480V 60Hz 3Ph

Also Included (1) Dough Trough. The remaining Dough Troughs Will Be Available In March Of 2025.

Note: The Cross Conveyor And Panning Conveyor Will Not Be Available Until March Of 2025
