Product Description

Sandwich Maker:

The ThroughFlow Junior puts the entire ThroughFlow Sandwich System into a compact package ideal for smaller bakeries looking to add a layer of automation, or larger bakeries that need either short run or prototyping capabilities.

Utilizing the most capable and most compact cookie system available in the industry, without needing costly investments into infrastructure to operate.

This is the alternative to a second-hand sandwiching machine, which may need to be altered and worked on in order to work properly away from an oven band.

The ThroughFlow Junior is ready and built-for-purpose.

– 4-12 lanes wide
– Unit available with automatic pan loading
– Manually fed; magazines, vibratory feed, or bake sheet feed
– Full width depositor – 1 or 2 colors!
– Optional manifold depositing
– Sanitary production, no chains near your product, no belts
– Mechanical capping, no vibratory chutes, no vacuum
– Exact, controlled, height calibration
– Change production within minutes
– Plenty of capacity

In-Line Piston Type Depositor:

VDE 18-piston type depositor, highly accurate, easy to adjust for weight and simple to clean.

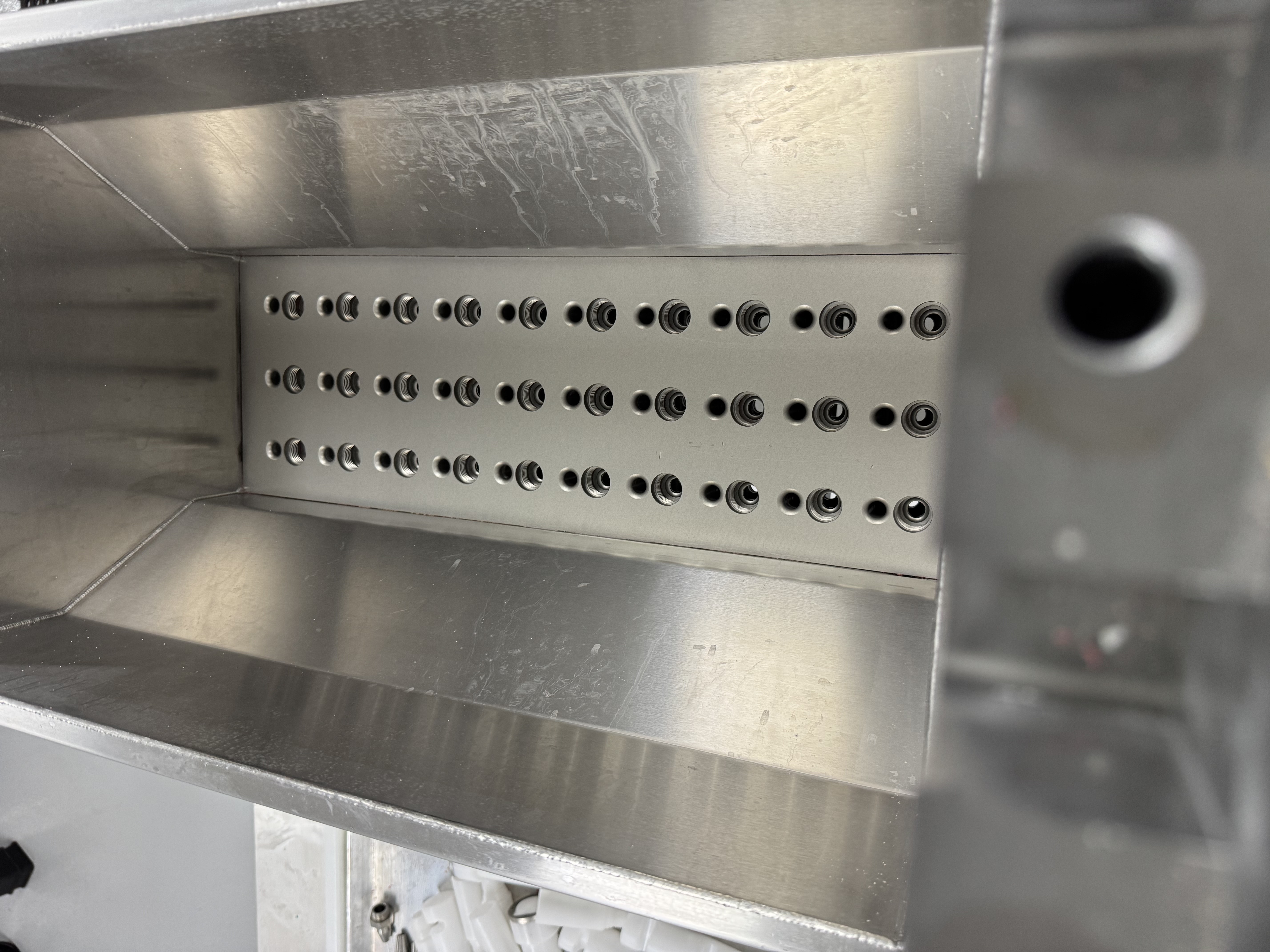

Complete with heavy gauge stainless-steel hopper.

Hopper provided with smooth moving linear agitator, keeping walls clean without adding air to the dough.

Depositing volume as well as row-to-row distance can be simply adjusted and stored in “Recipe” HMI.

In the VDE depositor, each piston has its own Delrin rotating valve. This valve moves inside a stainless-steel

sleeve. With this system, we can use very short valves, easy to install, to clean, to remove.

The VDE servo-electric controlled depositor is based on technology very successful used in the international

chocolate and confectionary industry for many years.

It is simple, few parts to clean, few parts to break, few parts to maintain, yet an absolute top accuracy is

achieved.
